© Barefoot Power
3 ultra-bright LED lamps
Barefoot
Connect Life
Plus

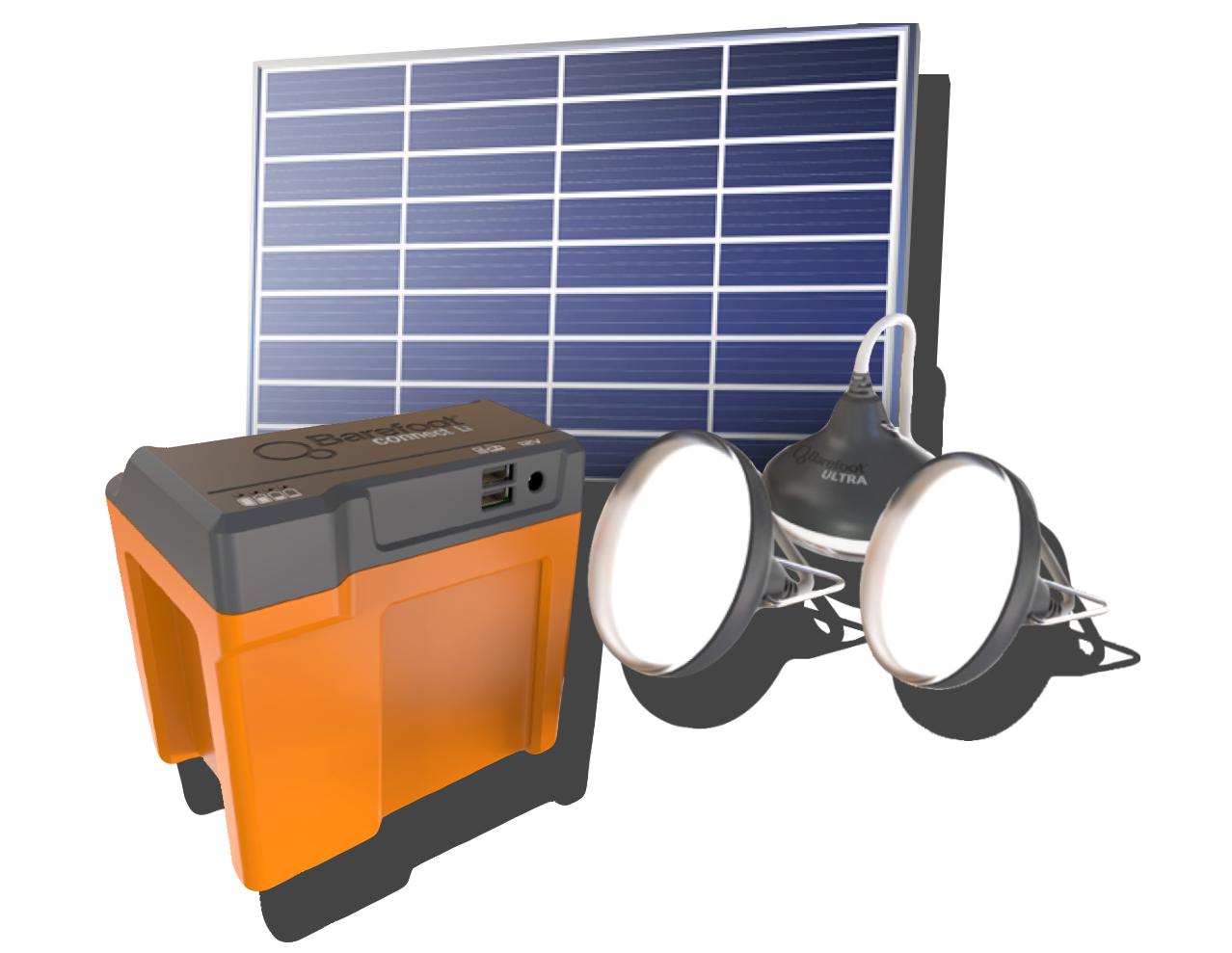

Barefoot Connect Life Plus offers users the solar lighting experience at home, shop or school. The Connect Life Plus provides 3 ultra-bright LED lamps and each lamp provide the light output of 150 lumens or equivalence to 10-12 candles.
The system can light up three rooms at once providing light for studying, cooking, socializing or even income-generating activities.
Scroll to see
More Info:
Ultra-bright LED lamps
3
The 3 ultra-bright LED lamps and each lamp provide the light output of 150 lumens or equivalence to 10-12 candles.
Solar Panel
10W
The system comes with a 10W Solar Panel, and two USB outputs provided in the controller box for phone charging.
Warrenty
24
months Warrenty.
Included Accessories
0.5m
0.5m Micro USB cable for phone charging Mounting screws and clips.
Detailed Technical Specifications :
| Solar Panel | |
|---|---|
| Rated output | 10 Watts peak, at standard test conditions of 1.5AM, 25°C, 1000W/m2 |
| Construction | Tempered glass front, anodized aluminium frame, IP65 rated with 1 bypass diodes. Integrated 7m cable |
| Weight | 1.4kg |
| Dimensions | 350 x 300 x 17mm |
| Max Power Voltage | 17.5V |
| Max Power Current | 0.58A |
| Open Circuit Voltage | 21.0V |
| Short Circuit Current | 0.68A |
| Operating Temperature | -40°C to +85°C |
| Battery | LiFePO4 Battery Pack |
|---|---|
| Capacity | 3.3Ah |
| Nominal Voltage | 12.8V |
| Power System Controler | |
|---|---|
| Nominal Voltage | 12.8V |
| Outputs | 4 x 12V lighting outputs (2A, 24W shared) & 1 x 12V device output (2A, 24W dedicated ) 2 x 5V USB outputs (1A, 5W shared) |
| Inputs | Max PV Voltage: 24V Max PV Power: 20W Max PV Current: 1.5A |
| Protections | PV array short circuit, Overload, Load short circuit, PV reverse polar |
| Battery Management | BMS (Battery Management System) and microprocessor driven charge controller Upper Charging Limit: 14.4V Low Voltage Disconnect: 10V |
| Self-consumption | Active mode: 9-11mA Sleep mode: 1mA |
